API 7K high-pressure mud and cement hoses

Black Eagle Flexible Hoses for Mud, Cementing and Chemical Injection. DNV GL – Type Approval complying with API Spec 7K, Drilling and Well Servicing Equipment FSL-0 and FSL-1 for DNVGL-OS-E101 – Drilling facilities. DNVGL TAD000014Y, DNVGL TAD0000CA

We are Parker Certified for assembly of Parker Polyflex Black Eagle Hose Family

2580N Series FSL-1 Hose is developed as a substitute to Chicksan Hardpipe

Benefits:

Flexible Hose up to 690 Bar WP*

Hammerlug Male/Female end Connections

Increases User Safety

Reduces on-site assembly cost

Reduces on-site assembly time

Easier on-site Hook Up, reduces or eliminate need of scaffolding

Reduces potential leak points

Reduces cost of maintenance

Reduces need of Chicksan Hard pipe

Important Information!

Hoses for Mud, Cementing and Chemical Injection.
DNV GL – Type Approval complying with API Spec 7K, Drilling and Well Servicing Equipment for DNVGL-OS-E101 – Drilling facilities
FSL-0 Certification of 2 “Black Eagle Hose with API Flange End Connection shall be in accordance with DNV GL Certificate No: TAD0000CA
FSL-1 certification of 2 “Black Eagle Hose with Hammerlug FIG 1502 end couplings shall be in accordance with **DNV GL Certificate No: TAD000014Y
***DNV Product Certificate to be issued for each hose, to cover Drill N Requirements

Product labeling
For traceability, the following marking shall be carried out on each product:

All equipment must be clearly marked with identification and serial number relating to the equipment for certificates and manufacturing documentation.

Labels in accordance with API specifications. 7K, 6th ed.

THIS MEANS !!!!!
BLACK EAGLE HOSE WITH API FLANGES, FOR USE ACCORDING TO FSL-0,
TO BE MARKED WITH FSL-0

BLACK EAGLE HOSE WITH FIG 1502 HAMMERLUG, FOR USE ACCORDING TO FSL-1, TO BE MARKED WITH FSL-1.

To avoide hook up of wrong product

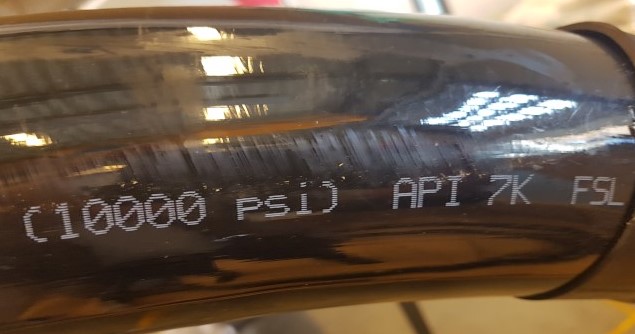

HYDRFIT SUPPLIES 2 " BLACK EAGLE HOSE WITH FSL-1 LAYLINE HOSE MARKING IN ADDITION TO THE ABOVE REQUIREMENTS

If you have hoses in production for use with Mud & Cement without the above certificate or markings, it is possible that you operate in contravention of the requirements specifications according to Drilling and Well Servicing Equipment for DNVGL-OS-E101 – Drilling facilities.
